24 Volt Wiring Diagram with Connection Examples and Circuit Layout Tips

Use color-coded conductors: red for positive, black or blue for negative. Always verify polarity with a multimeter before activating the circuit. For setups involving both AC and DC feeds, maintain separate grounds to avoid interference.

Fuse placement is non-negotiable. Install inline fuses as close to the power source as possible. For a 24V setup powering LEDs or actuators, a 5A fuse typically suffices. For higher loads, calculate amperage using Ohm’s Law and choose the nearest standard fuse rating above your requirement.

For dual-battery configurations, connect cells in series: link the negative terminal of the first unit to the positive of the second. The outer terminals become the main output. Use 6 AWG copper strands for connections drawing up to 60A to avoid voltage drops.

In control circuits, integrate relays rated above your system’s maximum draw. A typical 30A relay with a 70-ohm coil works well. If using a control switch, place it on the positive feed to maintain safety during maintenance.

Label every line clearly at both ends. Use heat-shrink tubing with printed tags or durable adhesive labels. This becomes vital for troubleshooting or future upgrades.

24V System Layout

Use two 12V batteries connected in series to achieve a 24V supply. Link the positive terminal of the first unit to the negative terminal of the second one. The remaining two terminals provide the input for the load or distribution network.

• Always insert a fuse within 6 inches of the positive output terminal.
• Apply color coding: red for positive lines, black for negative.
• Ground the negative path properly to avoid floating references in metal frame applications.
• Use at least 14 AWG conductors for currents under 15A; for higher loads, size up accordingly.
• Label each branch clearly to support troubleshooting and future upgrades.

For distribution to multiple loads:

1. Install a bus bar near the source to divide the supply cleanly.
2. Run separate leads to each device with individual protection (e.g., breakers or blade fuses).
3. Keep all paths as short and direct as possible to reduce drop and interference.

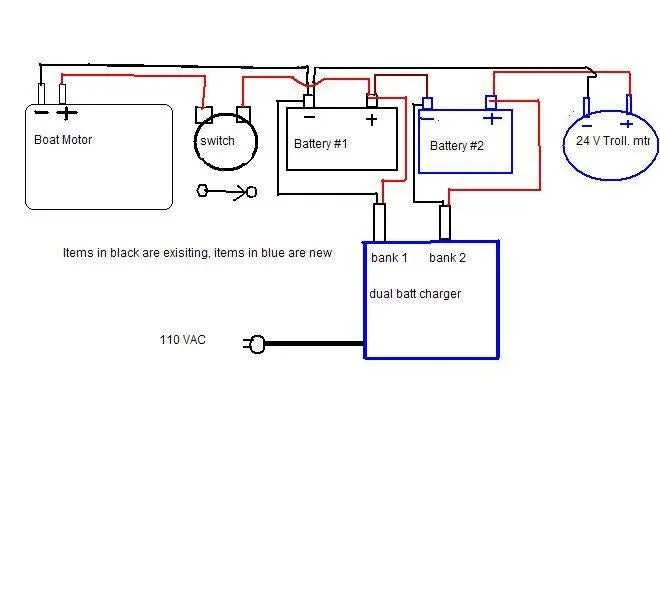

How to Wire Two 12V Batteries in Series for a 24V System

Connect the positive terminal of the first unit directly to the negative terminal of the second. This forms a chain, doubling the overall pressure without increasing capacity. Use short, thick conductors to minimize resistance and heat buildup.

After linking the middle terminals, the open negative on the first and the open positive on the second become the system outputs. These ends now supply the combined potential difference. Mark them clearly to avoid reverse polarity during use.

Install an inline fuse close to the positive output to protect against surges. Secure all connections with crimped lugs and ensure firm mechanical contact to prevent voltage drops.

Before activating any load, check the total output using a multimeter across the open ends. Expect a reading around 24, assuming both units are fully charged and healthy.

Ensure both sources are of equal type, age, and charge level to avoid imbalance. Mismatched cells degrade faster and may cause uneven discharge, reducing system lifespan.

Choosing the Correct Wire Gauge for 24V Circuits Based on Load and Distance

For a 10-ampere current over a 10-foot run (one-way), use 14 AWG copper. If the distance increases to 25 feet, upgrade to 12 AWG to keep voltage drop under 3%. Exceeding 3% drop can cause devices to malfunction or reduce lifespan.

At 20 amperes, 10 feet requires 12 AWG minimum. For 30 feet, shift to 10 AWG. If the path stretches to 50 feet or more, 8 AWG is needed to maintain proper performance and minimize energy loss.

For lighting circuits drawing under 5 amperes, 16 AWG may suffice up to 15 feet. However, for motor loads or inrush-sensitive electronics, use 14 AWG even at short lengths.

Aluminum conductors demand one gauge larger than copper for the same current and distance. Use only if local codes permit and terminate with compatible lugs.

Always measure the total length of both supply and return conductors when calculating distance. Double the one-way length to determine the actual path resistance.

Common Mistakes in 24V Electrical Systems and How to Avoid Them

Always verify polarity before connecting components. Reversing positive and negative leads causes damage to sensitive devices and may result in system failure. Use a reliable multimeter to confirm correct orientation.

Do not underestimate cable gauge requirements. Using undersized conductors leads to excessive heat buildup and voltage drop. Refer to standard ampacity charts to select proper thickness based on current load and cable length.

Avoid loose or poorly crimped terminals. Insufficient contact creates resistance points that generate heat and intermittent connections. Employ quality connectors and tools designed for secure terminations.

Prevent mixing different conductor materials without proper connectors. Directly joining copper and aluminum can cause galvanic corrosion and connection failure. Use compatible transition fittings to maintain integrity.

Ensure adequate insulation and protection from environmental factors. Exposure to moisture, chemicals, or abrasion deteriorates protective layers and increases risk of shorts. Choose cables rated for the specific conditions and apply additional shielding if needed.

Do not overlook proper grounding practices. A missing or weak earth connection compromises system safety and can cause erratic behavior in control units. Follow recommended grounding schemes to maintain stable operation.

Always label all lines clearly. Misidentification leads to mistakes during maintenance or upgrades. Use durable tags or heat shrink labels with legible markings for easy troubleshooting.
