2015 Nissan Altima Serpentine Belt Routing and Diagram Guide

For an efficient and smooth-running engine, it’s crucial to ensure that all accessory drive components are properly connected and aligned. If you’re tackling maintenance or repairs, understanding how to position the various pulleys and tensioners is vital. A detailed illustration of the correct arrangement will assist in preventing issues such as slipping, squealing, or excessive wear on the components.

Start by verifying that the main crankshaft pulley is properly aligned with all other pulleys. Follow the designated path for the power steering pump, air conditioning compressor, alternator, and water pump. The components should follow a specific sequence, ensuring each one is appropriately engaged with the tensioner system.

Key Points to Remember: Ensure the tensioner pulley is positioned to maintain proper pressure on the drive system, preventing slack or excess tension. A misaligned system can lead to premature wear, or worse, component failure. Double-check the routing path before tightening any components.

Before finishing the installation, take time to manually rotate the drive system to confirm all components are moving freely and smoothly. Once you’re sure everything is in place, you can proceed with tightening the tensioner and securing the components. Regularly inspect the system for signs of wear and tear to maintain optimal engine performance.

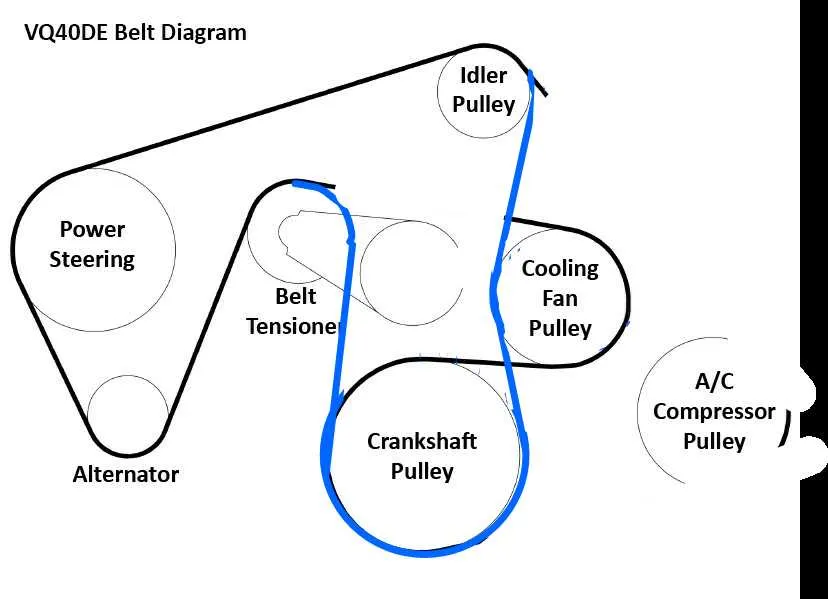

Accessory Drive System Routing

For accurate routing, ensure the main pulley aligns with the tensioner, and that the loop passes through the crankshaft pulley before moving towards the alternator. From there, it should move across the power steering pump and the A/C compressor, maintaining the proper tension. The final section should guide the belt to the water pump, before returning to the tensioner.

When replacing the accessory drive system, check the condition of the tensioner and pulleys for wear. The path should be free of twists, and the belt must be securely seated in all grooves. Proper alignment minimizes stress on the system and extends the life of components.

Always double-check that the belt sits correctly after installation and that the tension is optimal. Misalignment can lead to premature failure of pulleys or the belt itself.

How to Identify the Routing on Your Vehicle’s Drive System

Locate the routing label on the engine bay for precise placement. This label is often near the hood latch or along the engine compartment frame. If unavailable, use the pulley arrangement as a guide–typically, the largest pulley is the crankshaft, and the smallest one is the tensioner.

Start by aligning the component nearest to the crankshaft pulley, and proceed to follow the path of the drive system. Ensure the loop runs across the alternator, air conditioning compressor, and other accessories. Pay attention to the direction of the tensioner; it should push against the loop to ensure proper tension.

If the label or a reference is missing, cross-check with a repair manual for routing specifics. Additionally, use an online tool or professional service to compare your configuration with a reference model.

Common Issues with the Drive Belt on a 2015 Sedan

To avoid sudden breakdowns and costly repairs, regularly inspect the drive belt for signs of wear and tear. Here are some of the most frequent problems that can arise:

• Cracks and Fraying: Over time, the rubber material can develop cracks or fray due to constant exposure to heat and friction. If you notice any visible damage, replace the component immediately.
• Slippage: If the drive belt is loose or misaligned, it can slip from the pulleys, reducing efficiency. This often results in engine performance issues and can lead to overheating.
• Excessive Noise: A squealing or chirping sound when starting the engine is often a sign that the belt is worn or misaligned. This noise typically indicates that the tension is off, and replacement is needed.
• Loss of Power: A worn-out or damaged drive component can cause a loss of power to essential engine components such as the alternator or power steering. If any of these systems fail, it may be a sign of a problem with the belt.
• Glazed or Shiny Surface: If the belt surface looks shiny or glazed, it means that the friction is too high, likely due to excessive heat buildup. This can lead to reduced performance and increased wear.
• Tension Issues: Improper tension can lead to either excessive tightness or looseness, both of which negatively affect performance. A loose belt may cause the systems it powers to underperform, while a tight belt can cause unnecessary strain on components.

Regularly checking for these issues can help prevent unexpected breakdowns and prolong the life of key engine parts.

Step-by-Step Guide to Replacing the Drive Belt on a 2015 Nissan Altima

Before starting the replacement process, make sure to have the following tools: a socket wrench, a ratchet, and a replacement drive belt. You’ll also need a belt tensioner tool to safely release the tension on the old component.

1. Preparation: Ensure the engine is off and the vehicle is parked on a flat surface. Disconnect the battery to prevent any accidental electrical issues while working on the engine.

2. Locate the Tensioner Pulley: Using a ratchet and the proper socket, find the tensioner pulley which holds the drive belt in place. This will typically be on the front of the engine. A tensioner tool may be needed to release the pressure applied by this pulley.

3. Release the Tension: Using the tensioner tool, turn the tensioner pulley counterclockwise to release the belt’s tension. Once the tension is released, carefully remove the old component from the pulleys.

4. Compare the New and Old Components: Before installing the new one, make sure the replacement piece matches the old one in size and shape. Any discrepancies could lead to improper installation or functional issues.

5. Install the New Component: Begin by routing the new component around the pulleys, ensuring it follows the same path as the previous one. Pay attention to the ribbed side of the belt, which should face the grooves on the pulleys.

6. Reapply Tension: Once the new component is in place, use the tensioner tool to push the tensioner pulley back into position, ensuring that it maintains the proper tension on the new part. Make sure the belt is securely in place and aligned with all pulleys.

7. Inspect the Installation: Double-check that the new component is aligned correctly with all pulleys. A misaligned piece could cause premature wear and tear, leading to future problems.

8. Reconnect the Battery: After confirming that everything is properly installed and aligned, reconnect the vehicle’s battery.

9. Test the System: Start the engine and let it run for a few minutes. Listen for any unusual noises or signs of slippage. Ensure the belt is functioning smoothly by observing it while the engine is running.

10. Final Inspection: Once the system has been tested, perform a final inspection to ensure the component is running smoothly without any signs of wear or misalignment.

Step	Action
1	Prepare the tools and disconnect the battery.
2	Locate and release tension on the pulley.
3	Remove the old component.
4	Compare the new part with the old one.
5	Install the new component following the original routing.
6	Reapply tension and ensure proper alignment.
7	Inspect the installation for alignment and security.
8	Reconnect the battery.
9	Start the engine and listen for any issues.
10	Perform a final inspection.
