Detailed belt routing diagram for 2013 Nissan Altima engine components and maintenance

For proper maintenance and replacement of the drive system components, follow the specific routing schematic tailored to the 2013 midsize sedan by Nissan. Understanding the exact path of the accessory drive cord is crucial to ensure all pulleys, including the alternator, power steering pump, and air conditioning compressor, are correctly engaged.

Key points to consider: The tensioner pulley must be aligned precisely to maintain optimal tension on the serpentine strap, preventing slippage or premature wear. Each groove on the multi-ribbed belt fits into corresponding pulley grooves, so a detailed reference of the routing pattern is essential for accurate installation.

Using an authentic factory layout or a verified repair manual schematic is recommended to avoid misrouting, which can lead to accessory malfunction or engine damage. Pay special attention to the idler positions and the tensioner arm angle to guarantee consistent performance and longevity of the drive assembly.

Engine Accessory Routing for the 2013 Nissan Altima

To ensure proper installation of the serpentine system on the midsize sedan model year 2013, start by aligning the tensioner pulley with the crankshaft pulley. The routing path includes the alternator, power steering pump, and air conditioning compressor. The belt should loop clockwise around the crankshaft, then pass over the water pump pulley before wrapping around the alternator and tensioner.

Make sure the idler pulley maintains adequate pressure to prevent slippage. When replacing the drive loop, confirm the routing matches the factory configuration to avoid premature wear. A routing label is often found under the hood near the radiator support for quick reference. Use a proper belt tension gauge for verification after installation.

For the V6 engine variant, the layout varies slightly due to the additional components. Follow the specific path that bypasses the lower pulleys and incorporates the secondary tensioner. Avoid twisting or overlapping the belt during fitting, as it compromises durability and function.

Routine inspection of the multi-rib loop for cracks or glazing can prevent failures. Replace with OEM-grade parts for optimal compatibility and lifespan. Proper tension and alignment are crucial to prevent noise and mechanical issues in this model’s accessory drive system.

Identifying the Location and Routing of the Serpentine Drive Component

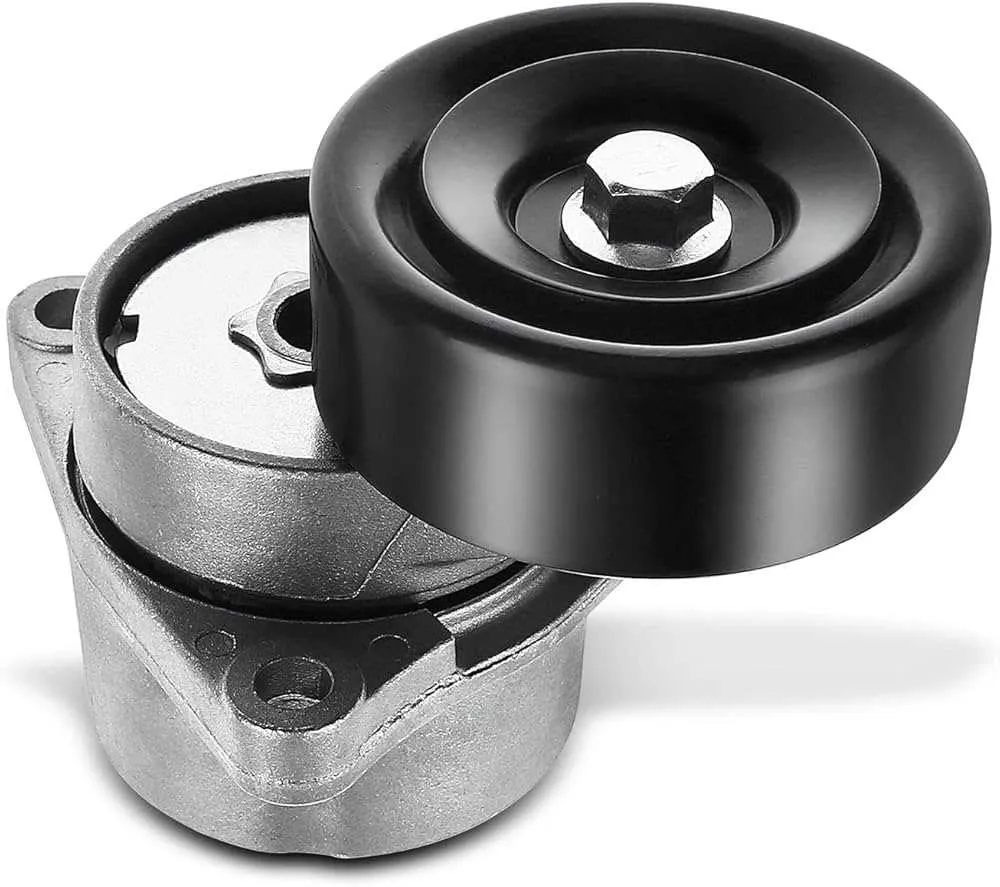

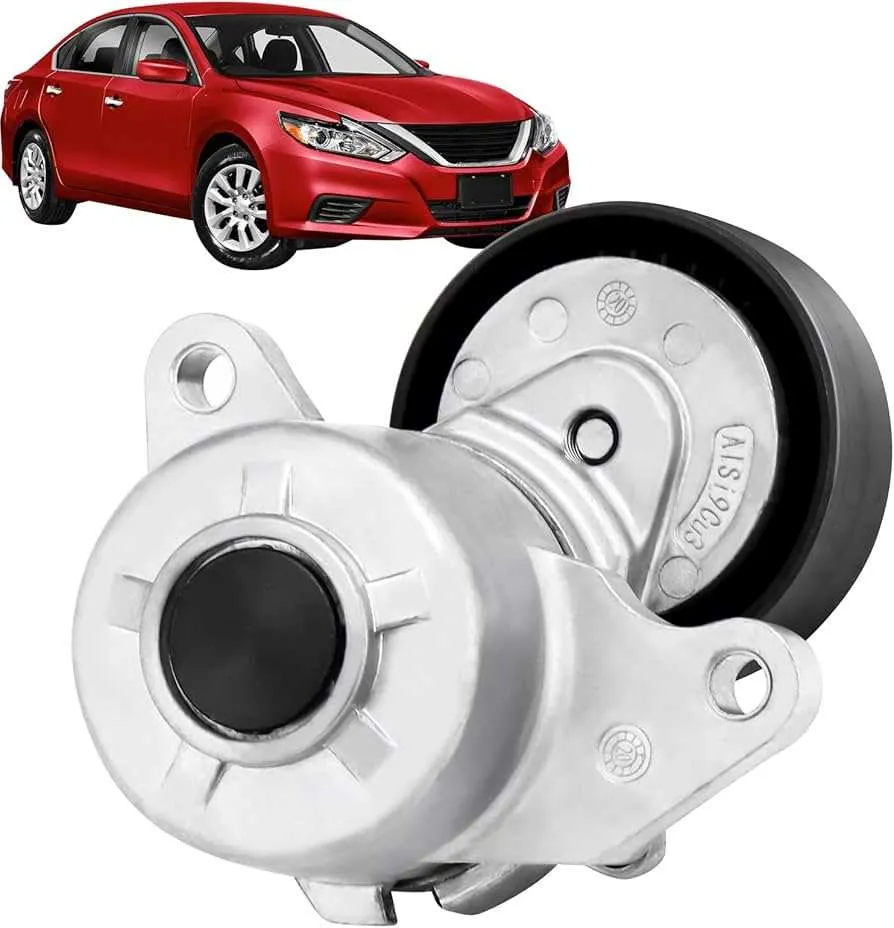

Locate the serpentine component on the front of the engine, wrapping around multiple pulleys including the crankshaft, alternator, power steering pump, and air conditioning compressor. Follow the tensioner pulley, which maintains proper tension and is typically spring-loaded, positioned near the middle of the routing path.

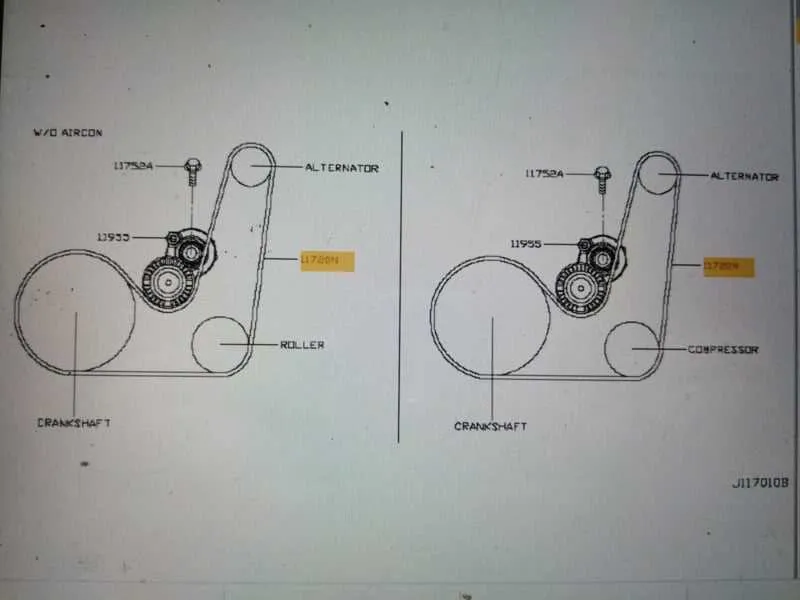

Trace the continuous loop starting at the crank pulley at the engine’s base, moving upward to the water pump pulley, then curving around the alternator’s rotor. Ensure the serpentine loop crosses over the idler pulley to guide alignment and prevent slippage.

Use the engine cover markings or a routing schematic decal usually found on the radiator support or under the hood to verify the exact pathway. Confirm that the component does not twist and fits smoothly over each pulley’s groove to ensure efficient power transmission to all accessories.

Step-by-Step Guide to Removing and Installing the Drive Component

Begin by disconnecting the negative terminal of the battery to prevent accidental shorts. Locate the serpentine loop around the pulleys under the hood. Use a suitable wrench or a serpentine tool to rotate the tensioner pulley clockwise, releasing tension on the accessory loop. Carefully slide the existing loop off the smallest pulley first, then remove it fully from the system.

Inspect all pulleys and the tensioner for wear or damage before proceeding. When placing the new loop, follow the routing path precisely to avoid misalignment. Position the loop over the largest pulley first, then continue threading it around the remaining wheels, leaving the tensioner pulley for last. Rotate the tensioner again to allow the loop to slip over it, then slowly release the tensioner to apply proper tension.

Verify the loop sits correctly in all pulley grooves without slack or twisting. Manually spin the pulleys to ensure smooth movement and confirm the component’s correct positioning. Finally, reconnect the battery terminal and start the engine, observing the loop for any unusual noises or movement.

Troubleshooting Common Pulley and Strap Issues Using the Layout

Start by inspecting the tensioner pulley for proper alignment and adequate pressure. Misalignment often causes unusual noises and premature wear.

1. Check for Cracks or Fraying: Examine the serpentine strap closely along its entire length. Visible splits or shredded fibers indicate immediate replacement.
2. Verify Routing Against the Layout: Confirm that the driving strap follows the exact path shown in the schematic. Incorrect routing results in slipping or overheating components.
3. Assess Tensioner Operation: Ensure the automatic tensioner moves freely and maintains consistent tension. Stiff or stuck tensioners lead to uneven wear.
4. Listen for Squealing Sounds: High-pitched noises at startup or acceleration often signal a loose or glazed strap requiring adjustment or replacement.
5. Inspect Pulleys for Damage: Look for worn grooves, rust, or wobbling. Damaged pulleys cause vibration and reduce strap lifespan.
6. Replace Components in Pairs: When swapping the main driving strap, consider replacing the tensioner and idler pulleys simultaneously to maintain system reliability.

Use the provided schematic to methodically trace each loop and identify areas prone to stress or misalignment. Proper adherence to the layout minimizes breakdown risks and extends part durability.
