2008 Ford Escape Serpentine Belt Diagram and Routing Guide

To replace or troubleshoot the engine accessory drive system on your vehicle, first ensure you understand the routing and tensioning mechanism. The main drive components for accessories such as the alternator, power steering, and air conditioning are connected by a continuous loop. The system must be routed precisely to avoid slippage or misalignment. Use a ratchet and socket to relieve the tension from the tensioner pulley, which will allow the removal of the looped system.

Step 1: Start by locating the main tensioner pulley, which is typically positioned on the front of the engine block. The orientation of this component is crucial, as it controls the tightness of the loop, and any slack could cause the accessories to malfunction.

Step 2: Follow the route of the system around other pulleys, such as the crankshaft, alternator, and water pump. Make sure the pulley positions are aligned according to manufacturer specifications, with no deviations. Any error in this routing can result in excess wear on the engine components or even a system failure.

Note: The direction in which the loop is installed matters; it should always follow the path that ensures smooth engagement of each pulley and does not create unnecessary tension on any part of the system. Ensure all fasteners are torqued correctly before testing the system for functionality.

Drive Belt Routing and Components

Ensure that the engine’s drive components, such as the alternator, power steering pump, and A/C compressor, are properly connected with a single continuous loop to prevent any performance issues. Use the factory routing schematic to check that the tensioner is properly engaged, keeping the belt taut and aligned with each pulley.

When replacing or inspecting the drive system, verify the condition of the idler pulleys and tensioner, as these parts wear over time and may affect overall belt tension. If any component shows signs of wear, replace it to avoid future failures.

Pay attention to the alignment of the tensioner pulley, ensuring it maintains its function of adjusting the belt’s tightness. Use a torque wrench to confirm the appropriate tension when installing the new part to avoid incorrect tension levels, which could cause premature wear or damage to surrounding components.

Consult the service manual for specific belt lengths and pulleys used for your vehicle’s engine configuration. Any deviation from the original layout could result in issues like slippage, noise, or failure to start properly.

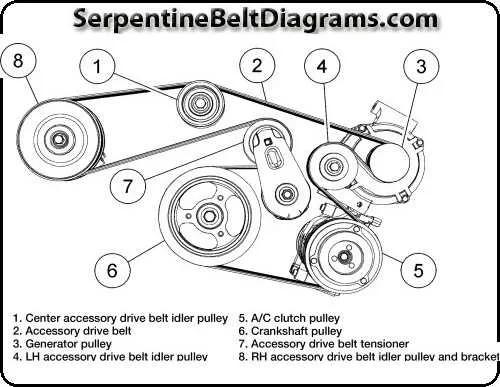

How to Read the 2008 Ford Escape Serpentine Belt Diagram

Start by locating the tensioner pulley. It controls the tightness of the system, and its position helps determine the routing of the system. Usually, it’s positioned near the top or bottom of the layout. The diagram will typically show a circular shape with an arrow indicating the direction of rotation.

Next, identify the alternator and air conditioning compressor. These components often sit on opposite sides of the system. The diagram will indicate the path of the drive from the crankshaft pulley, around these elements, and back to the tensioner. Follow the directional arrows carefully to see how the pulleys align.

Focus on the order of pulleys. The diagram outlines a precise sequence of steps, from the crankshaft to various components like the power steering and water pump. This sequence is vital for the correct setup, ensuring optimal performance of each engine part.

Check for any additional idler pulleys. These are typically shown as small circles in the diagram and help guide the belt in the correct direction. Sometimes, these pulleys are adjustable to ensure proper tension throughout the system.

Finally, compare the diagram with the actual setup. This will confirm the alignment of each component and ensure that the routing matches. If the diagram indicates an optional component, make sure it’s included if needed. Any mistakes in following the diagram can lead to improper performance or damage to engine parts.

Step-by-Step Guide to Replacing the Drive Belt on a 2008 Vehicle

Start by locating the tensioner pulley and use a wrench or ratchet to relieve tension on the drive belt. Rotate the tensioner counterclockwise and remove the belt from the pulleys. Take note of the belt’s routing for reinstallation, either by referencing the vehicle’s manual or a routing diagram under the hood.

Next, inspect the old belt for any signs of wear or damage, such as fraying, cracks, or glazing. This will help determine if the new belt needs to be replaced. Compare the old and new belts to ensure they match in size and configuration.

Install the new belt by carefully following the same routing pattern as the original. Begin with the bottom pulleys and work your way up, ensuring the belt is seated securely in each groove. Pay close attention to the positioning on the tensioner pulley.

Once the belt is in place, rotate the tensioner pulley again to apply tension, securing the belt in place. Double-check that the belt is aligned properly on all pulleys and that there’s adequate tension.

Start the engine and observe the belt’s operation. Listen for any unusual noises and watch for proper alignment. If everything appears correct, the replacement is complete.

Common Issues with the Drive Belt System and How to Troubleshoot Them

Inspecting the drive belt is essential to prevent sudden failures. If the belt is loose, damaged, or misaligned, the engine’s accessories will not operate correctly. Here are some common issues and how to address them:

• Cracking and Fraying: If you notice cracks or frays along the surface of the belt, it’s time for a replacement. These signs indicate wear and a high risk of failure. Always check the belt for visible signs of damage.
• Slipping or Squealing: A squealing noise often points to a slipping belt. This can occur due to improper tension or contamination from oil or coolant. To troubleshoot, check the tension and clean the belt and pulleys. If the noise persists, replace the belt.
• Misalignment: If the belt doesn’t run straight along its path, it could be misaligned. Check the pulleys for any damage or misalignment. Realigning or replacing damaged pulleys will restore proper function.
• Overheating: Excessive heat can cause the belt material to degrade faster. If your engine temperature is consistently high, inspect the belt for signs of melting or extreme wear. Addressing the overheating issue will help prevent future belt damage.
• Worn Tensioner: A worn tensioner will fail to maintain proper tension on the belt. If the belt feels loose, inspect the tensioner. Replacing a faulty tensioner is crucial to prevent the belt from slipping or coming off completely.

Regular inspection and timely replacement of worn components are crucial to the longevity of the drive system. Always follow manufacturer recommendations for replacement intervals to avoid unexpected failures.
