How to Understand and Use the 2006 Ford F150 4×4 Vacuum Diagram for Improved Performance
When it comes to understanding how your 2006 Ford F150 4×4 operates, it’s important to know the ins and outs of its various systems. One particularly important aspect of your F150’s operation is its vacuum system, which plays a crucial role in controlling various functions in your vehicle.
The 2006 Ford F150 4×4 vacuum diagram serves as a visual representation of this system, illustrating how the vacuum lines connect to different components and what their functions are. This diagram can help you troubleshoot issues, identify potential problem areas, and maintain the proper functioning of your vehicle.
Whether you’re a seasoned mechanic or an F150 owner looking to learn more about your truck’s inner workings, understanding the vacuum diagram is key. By familiarizing yourself with this diagram, you can gain a deeper understanding of how the vacuum system operates, allowing you to effectively diagnose and fix issues as they arise.

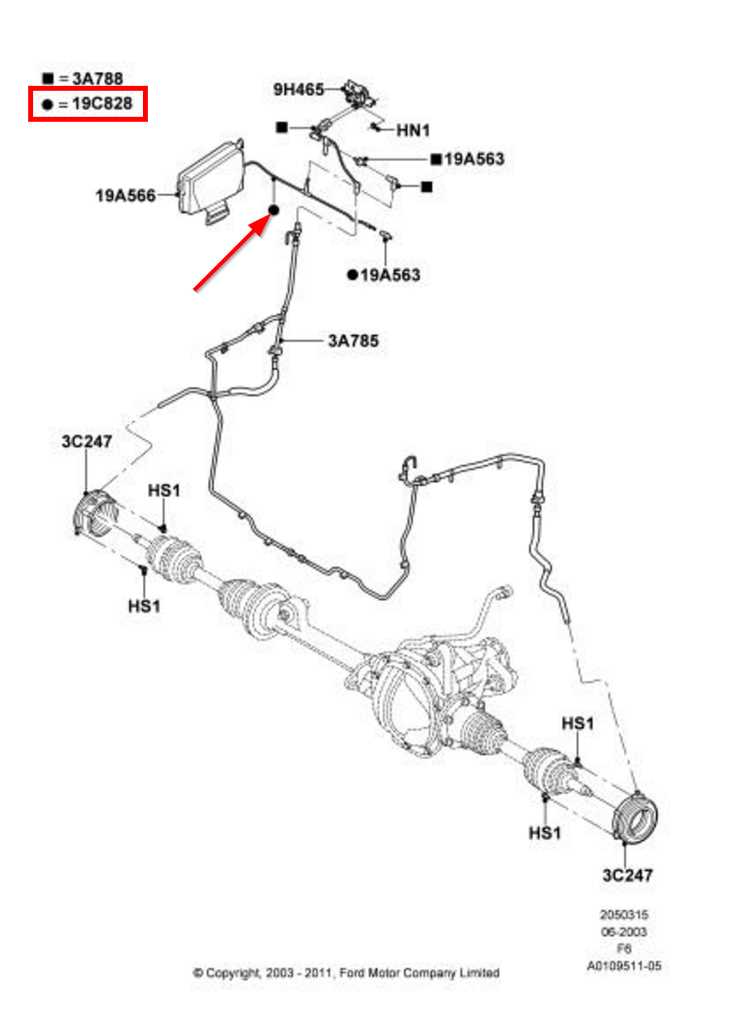

What is a 2006 Ford F150 4×4 Vacuum Diagram?
A 2006 Ford F150 4×4 vacuum diagram is a visual representation of the vacuum system in the 2006 Ford F150 4×4 truck. The vacuum system plays an important role in the operation of various components in the vehicle, such as the heating and cooling system, emissions control system, and the four-wheel drive system.
The diagram typically shows the different vacuum lines, valves, and connectors in the system, along with their respective functions and connections. It helps to provide a clear understanding of how the vacuum system operates and allows for easier troubleshooting and maintenance.
Components of a 2006 Ford F150 4×4 Vacuum Diagram
- Vacuum lines: These are rubber or plastic hoses that carry vacuum from the engine to various components and accessories in the vehicle.
- Vacuum valves: These are devices that control the flow of vacuum to different parts of the system.
- Vacuum connectors: These are fittings or couplings that connect different vacuum lines and components together.
- Vacuum reservoir: This is a storage tank that holds vacuum for later use by the system.
The 2006 Ford F150 4×4 vacuum diagram helps mechanics and DIY enthusiasts understand the layout and connectivity of the vacuum system, making it easier to diagnose and repair any issues that may arise. It is an essential tool for maintaining the proper operation of the vehicle’s systems and ensuring optimal performance.

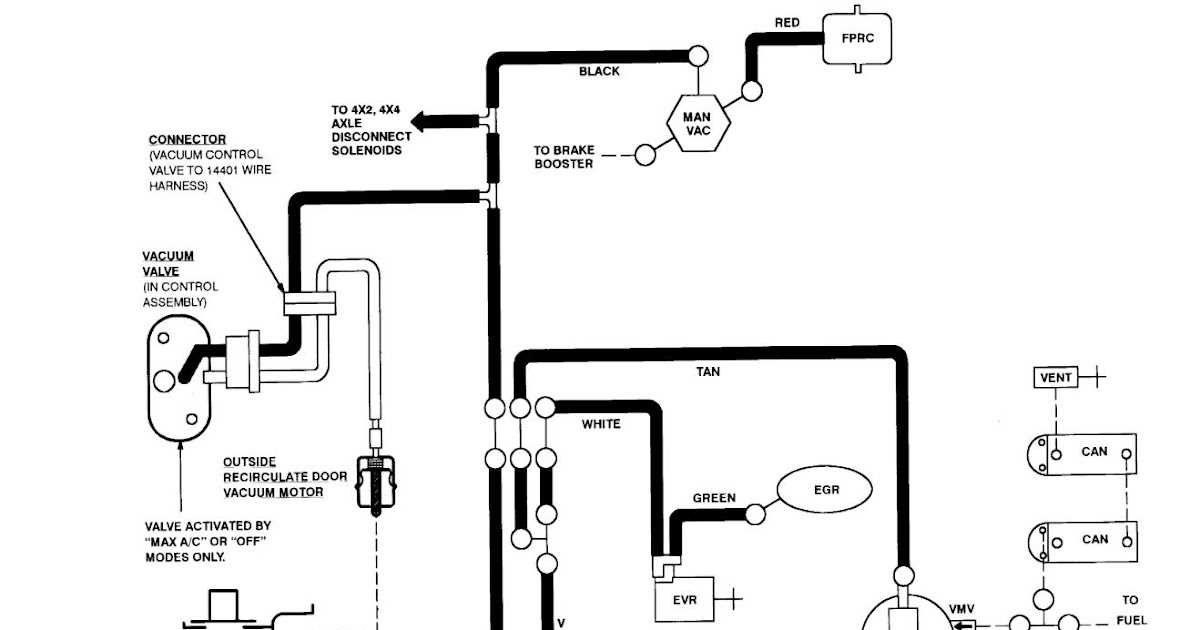

An Explanation of the Vacuum System in a 2006 Ford F150 4×4
The 2006 Ford F150 4×4 is equipped with a vacuum system that plays an important role in the vehicle’s overall performance. This system is responsible for controlling various components, including the HVAC (heating, ventilation, and air conditioning) system, the 4-wheel drive engagement, and the emissions system.
One key component of the vacuum system is the vacuum pump, which generates the necessary vacuum pressure to operate the various vacuum-controlled devices. The pump is typically located on the engine and is powered by the engine’s belt system. It works by drawing in ambient air and creating a negative pressure that is used to operate the vacuum-operated devices.
The vacuum system in a 2006 Ford F150 4×4 consists of a series of hoses, valves, and actuators that distribute the vacuum pressure to the various components. These components are designed to open or close under the control of the vacuum pressure, allowing them to perform their respective functions.
For example, the vacuum system controls the operation of the HVAC system by regulating the flow of air and controlling the position of the vent doors. It also controls the engagement of the 4-wheel drive system by actuating the vacuum-operated hubs, allowing the wheels to be powered by the engine.
In addition, the vacuum system plays a crucial role in the vehicle’s emissions system. It controls the operation of various emissions-related components, such as the EGR (exhaust gas recirculation) valve and the EVAP (evaporative emissions) system, ensuring that the vehicle meets the required emissions standards.
To maintain the performance of the vacuum system, it is important to regularly inspect and replace any worn or damaged hoses, valves, or actuators. It is also recommended to check the vacuum pump for proper operation and make any necessary repairs or replacements when needed.
In conclusion, the vacuum system in a 2006 Ford F150 4×4 is a critical component that controls various systems within the vehicle. Understanding how this system operates and properly maintaining it can help ensure the vehicle’s overall performance and functionality.
How to Read a 2006 Ford F150 4×4 Vacuum Diagram
When troubleshooting or repairing the vacuum system in your 2006 Ford F150 4×4, it is important to be able to read and understand the vacuum diagram. The vacuum diagram is a visual representation of the various vacuum lines and components in the vehicle’s vacuum system. This diagram provides crucial information about how the vacuum system functions and helps to identify any potential issues.
Here are the key steps to follow when reading a 2006 Ford F150 4×4 vacuum diagram:
- Identify the components: The vacuum diagram will include various components such as valves, hoses, and reservoirs. Familiarize yourself with the different components and their names to better understand the diagram.
- Follow the lines: The diagram will feature lines that represent the vacuum hoses. These lines connect different components together and indicate the flow of vacuum throughout the system. Trace the lines to understand how the vacuum is transferred between components.
- Check for arrows: Some vacuum diagrams may include arrows that indicate the direction of the vacuum flow. Make sure to pay attention to these arrows as they provide important information about the proper flow of vacuum in the system.
- Look for labels and numbers: The diagram may have labels or numbers near the components and lines. These labels and numbers can provide additional information such as the specific function of a component or the recommended vacuum levels.
- Refer to the key or legend: Some vacuum diagrams may include a key or legend that explains the symbols and abbreviations used in the diagram. If there is a key or legend, make sure to refer to it to fully understand the diagram.
- Compare to your vehicle: Finally, compare the vacuum diagram to the vacuum system in your 2006 Ford F150 4×4. Ensure that the components, hoses, and connections match the diagram. If you notice any discrepancies or missing components, it may indicate a problem with the system.
By following these steps, you can effectively read and interpret the vacuum diagram for a 2006 Ford F150 4×4. This will enable you to better understand the function of the vacuum system and troubleshoot any issues that may arise.
A guide to understanding the components and connections in the diagram
The vacuum diagram for a 2006 Ford F150 4×4 provides a visual representation of the various components and connections related to the vehicle’s vacuum system. Understanding this diagram is crucial for troubleshooting and maintaining the vacuum system, as it helps identify the different parts and their interconnections.
Vacuum Pump: The diagram typically shows the vacuum pump as a central component. This pump is responsible for creating vacuum pressure within the system, which is necessary for proper functioning of various vehicle systems such as the brake booster, HVAC controls, and more.
Vacuum Hose Connections: The diagram outlines the various vacuum hose connections throughout the system. These hoses act as pathways for the vacuum pressure to flow between different components. The connections are usually represented by lines with arrows indicating the direction of vacuum flow.
- Brake Booster: One of the most important components connected to the vacuum system is the brake booster. The diagram shows the vacuum hose connecting the booster to the vacuum pump. The vacuum pressure assists in brake pedal operation, providing increased braking power.
- HVAC Controls: The heating, ventilation, and air conditioning (HVAC) system in the vehicle also relies on vacuum pressure for its operation. The diagram may illustrate the vacuum hose connections involved in controlling the HVAC system, such as the vent mode actuators or the blend door.
- Four-Wheel Drive System: Another significant aspect of the vacuum system in a Ford F150 4×4 is its involvement in the four-wheel drive system. The diagram may indicate the vacuum lines necessary for activating and engaging the front wheel hubs for four-wheel drive operation.
By referencing the vacuum diagram, owners and technicians can identify the various components and their connections, allowing for effective troubleshooting and maintenance of the vacuum system in a 2006 Ford F150 4×4.

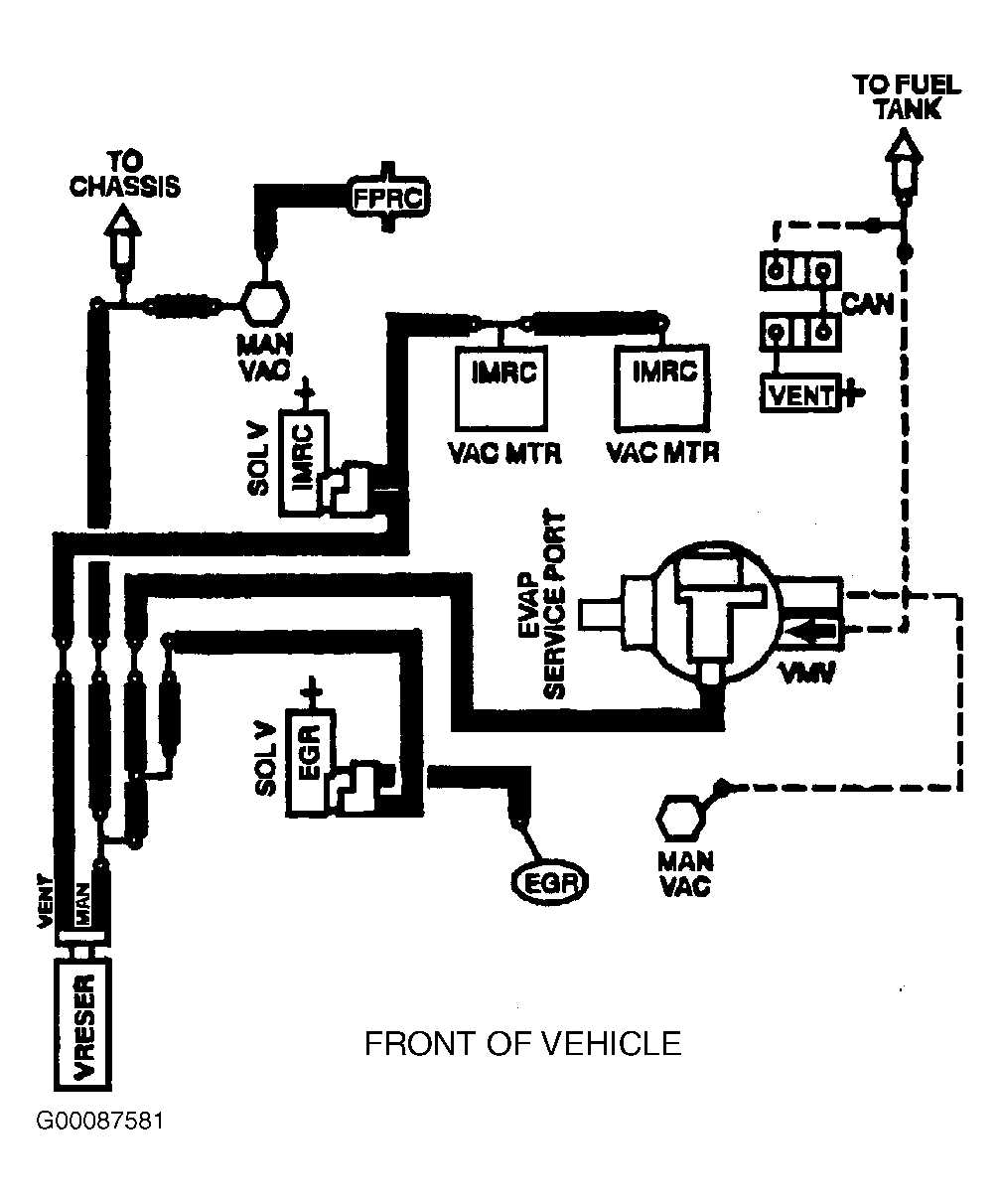

Common Problems and Troubleshooting for a 2006 Ford F150 4×4 Vacuum System
The vacuum system in a 2006 Ford F150 4×4 is a critical component that helps control various functions of the vehicle, such as the air conditioning, power brakes, and four-wheel drive engagement. Like any other system, it can experience problems over time that require troubleshooting and repairs. Here are some common problems and solutions for the vacuum system in the 2006 Ford F150 4×4:
Vacuum Leaks

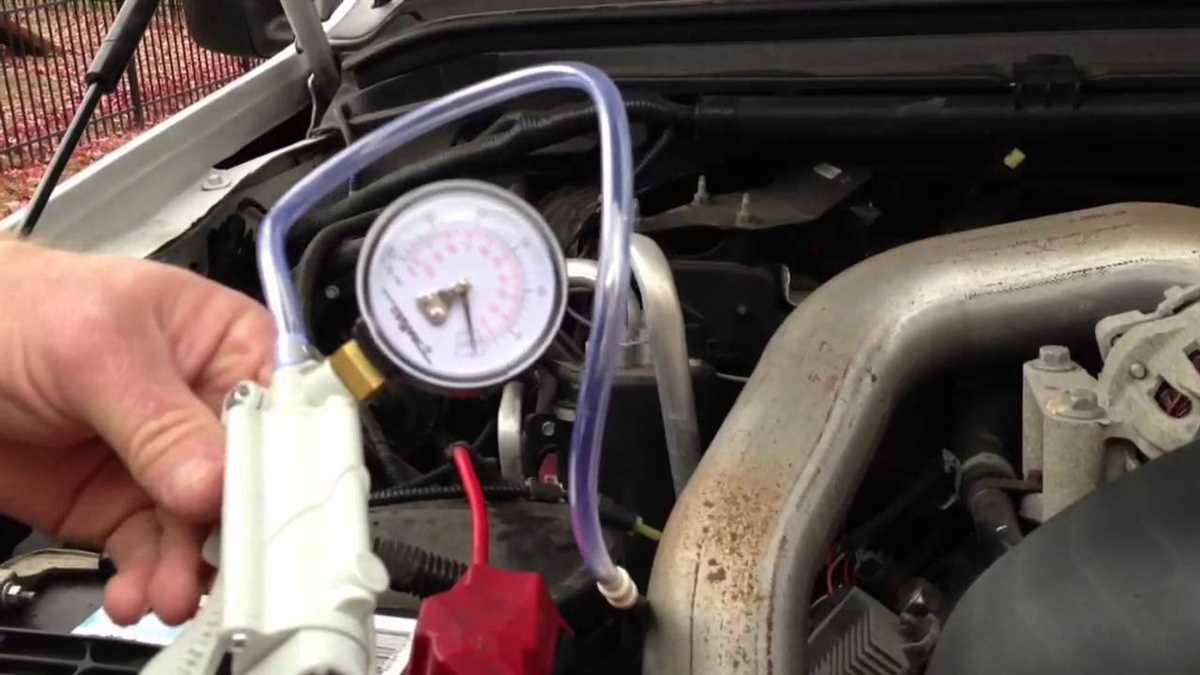

A common issue with the vacuum system is the occurrence of leaks. These leaks can result in poor performance or complete failure of the affected components. To identify vacuum leaks, you can perform a visual inspection of the vacuum hoses and connections for any cracks, tears, or disconnected hoses. Using a smoke machine can also help locate hard-to-find leaks. Once a leak is found, the affected hose or connection should be repaired or replaced.
Failed Check Valve
The vacuum system in the 2006 Ford F150 4×4 includes check valves that control the flow of vacuum to various components. If a check valve fails, it can cause a loss of vacuum pressure, leading to malfunctioning components. To troubleshoot a failed check valve, you can use a vacuum gauge to test the pressure at different locations in the system. If the pressure is not consistent, it may indicate a faulty check valve. The faulty valve should be replaced to restore proper vacuum function.
Malfunctioning HVAC System

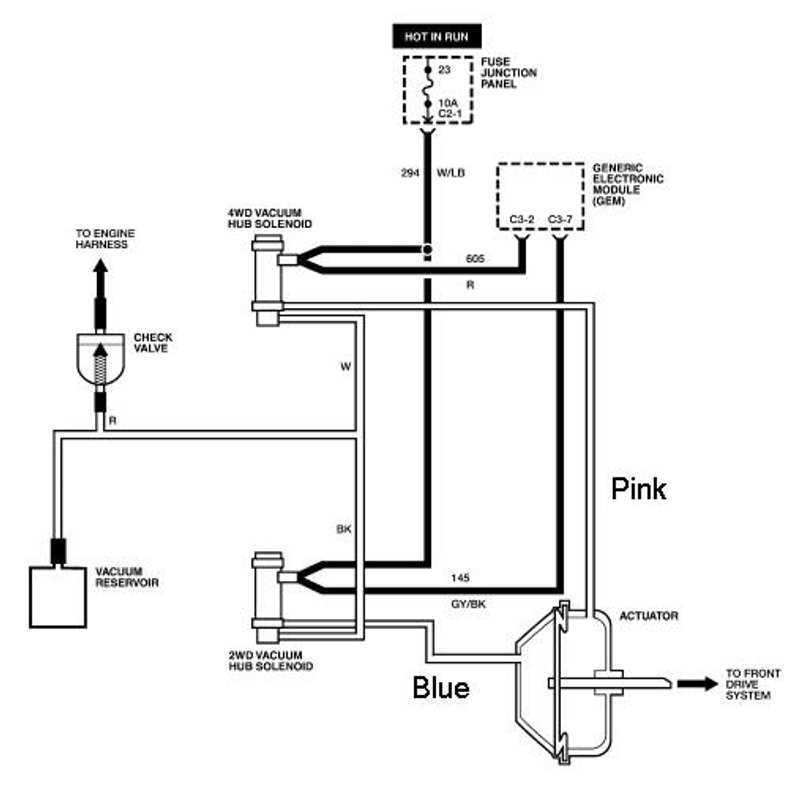

The vacuum system plays a crucial role in controlling the HVAC system in the 2006 Ford F150 4×4. If the HVAC system is not switching between different modes (e.g. defrost to floor vents) or if the airflow is weak, it may be a result of a vacuum-related issue. Checking the vacuum reservoir and the vacuum hoses connected to the HVAC system can help identify any problems. Cleaning or replacing clogged hoses and properly securing connections can often resolve these issues.
Engagement Issues with Four-Wheel Drive
Another common problem with the vacuum system in the 2006 Ford F150 4×4 is related to engaging or disengaging the four-wheel drive. If the system fails to engage or disengage, it may be due to a faulty vacuum actuator or a vacuum leak. Inspecting the vacuum actuator for any damage or leaks and checking the vacuum hoses connected to it can help troubleshoot this issue. Replacing the actuator or repairing any leaks should resolve the engagement problems.
Overall, the vacuum system in a 2006 Ford F150 4×4 is an important part of the vehicle’s functionality. Understanding the common problems that can occur and knowing how to troubleshoot them can help ensure that the system functions properly and the vehicle operates safely. Regular inspection and maintenance of the vacuum system can help prevent potential issues and extend the lifespan of the components.
