1998 Ford Ranger Exhaust System Diagram and Estimated Replacement Costs

If you’re noticing unusual sounds or decreased fuel efficiency, it’s time to inspect the components responsible for controlling emissions and sound reduction. Often, issues stem from wear or damage to the key parts that form the exhaust route. Commonly affected are the muffler, catalytic converter, and pipes that connect these elements.

The price for replacing these parts varies depending on their type and material. For example, a standard catalytic converter can range from $500 to $2,000, while a muffler might cost between $100 and $300. Labor costs should also be factored in, usually ranging from $75 to $150 per hour depending on the complexity of the installation.

Consider reviewing a layout of the vehicle’s exhaust route to identify potential problem areas. Having a clear understanding of the configuration will help you pinpoint which parts need attention. Always choose high-quality replacements to ensure durability and compliance with environmental standards.

To maintain efficiency and extend the lifespan of your vehicle’s emission system, regular checks are essential. If a part needs immediate attention, addressing it promptly will prevent more severe damage and avoid escalating repair costs.

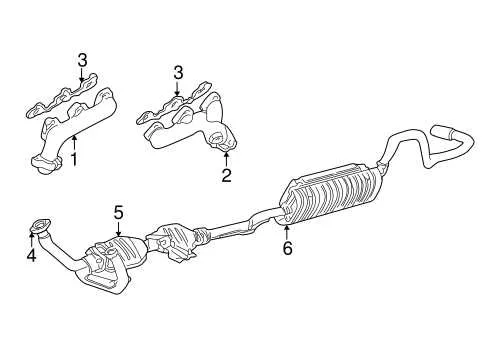

Exhaust Components Layout and Repair Expenses

When dealing with the components of the emission control setup, it’s crucial to have a clear understanding of the main parts that need attention. A standard setup includes the following parts:

• Front manifold
• Intermediate pipes
• Catalytic converter
• Muffler
• Tailpipe

Each of these parts plays a key role in managing vehicle emissions and noise. Replacing any of them depends on the condition and overall performance of the vehicle.

For those looking to replace these elements, prices typically range depending on part type and labor. Here are estimated price ranges:

• Manifold: $150–$600
• Intermediate pipes: $100–$400
• Catalytic converter: $200–$2,500
• Muffler: $100–$300
• Tailpipe: $50–$150

Labor for replacement can add anywhere from $100 to $300, depending on the complexity of the work and location. It’s recommended to consult a certified mechanic for accurate assessment and quotations.

Consider investing in high-quality parts to ensure long-term durability and improved performance, especially in older models.

Understanding the Key Components of the Vehicle’s Emissions Setup

Ensure that the primary elements–like the catalytic converter, muffler, and pipes–are in optimal condition for effective performance. The catalytic converter plays a crucial role in reducing harmful emissions by converting toxic gases. A malfunctioning or clogged converter can lead to poor engine performance and increased pollutants.

Inspect the manifold regularly. The exhaust manifold collects gases from the engine cylinders and channels them into the rest of the flow network. Any cracks or leaks in the manifold can result in decreased engine efficiency and potential damage over time.

Check the oxygen sensors frequently. These sensors monitor oxygen levels in the exhaust gases, ensuring the engine runs efficiently. A faulty sensor can result in poor fuel economy, increased emissions, and difficulty in engine management.

Ensure that all connections between the pipes, muffler, and catalytic converter are tightly sealed. Any leaks in these areas will allow gases to escape before they can be properly filtered, negatively impacting vehicle performance.

Step-by-Step Guide to Replacing the Exhaust Components

Start by securing the vehicle on a level surface with the parking brake engaged. Use a jack to lift the vehicle and support it with jack stands. Ensure the car is stable before proceeding.

Next, locate the main components that need to be removed, such as the manifold, pipes, and muffler. Using a wrench, loosen and remove the fasteners connecting these parts. Be prepared for resistance due to rust and wear–penetrating oil can be helpful here.

Once the fasteners are off, carefully detach the old parts. Keep the vehicle’s layout in mind so you can properly align the new pieces. Avoid damaging surrounding components like the catalytic converter or sensors while removing parts.

Place the new components into position, starting from the front. Ensure proper alignment before securing each part with fasteners. Tighten the bolts in a gradual manner to avoid uneven pressure or warping. Double-check all connections before tightening fully.

Once installed, inspect the system for leaks or misalignment. Start the engine to listen for any unusual sounds that may indicate improper installation. If everything sounds normal, lower the car and take it for a short drive to ensure proper functioning.

Finally, check for leaks one last time after the vehicle has cooled down. If no issues are present, the replacement process is complete.

Factors Affecting the Price of Pipe and Muffler Overhaul

The materials used play a significant role in determining how much you’ll pay for the overhaul. Stainless steel options are typically more expensive, but they offer better durability and longer lifespan compared to mild steel. Consider this trade-off when deciding what to install.

Labor expenses can fluctuate depending on your vehicle model. If your car requires intricate disassembly or specific tools, you might end up paying a premium for the labor involved. Mechanics usually charge more for complex jobs, so consult for an estimate before proceeding.

The region you’re in also impacts the final amount. Prices in urban areas with higher labor rates and demand for parts are generally steeper. Comparing local shops can help find a more competitive price without compromising quality.

Brand reputation matters too. Reputable manufacturers often charge higher prices due to their reputation for quality and long-lasting parts. If you opt for lesser-known brands, be aware that you may sacrifice longevity or reliability, affecting your vehicle’s performance in the long run.

Lastly, the type of repair needed influences the overall price. A full overhaul will naturally cost more than a partial fix or minor repair, so make sure to clarify with the technician the exact work involved before committing.
