07 Toyota Camry Belt Diagram and Maintenance Guide for Your Vehicle
To properly maintain the serpentine system of the 2007 model, it is essential to know the routing and connections of the components. First, ensure the proper tension on the pulleys by inspecting the routing pattern. The system follows a specific path, with the drive belt circling around the crankshaft, alternator, power steering, and air conditioning compressor. Misalignment or wear on any of these parts could lead to performance issues or premature failure.
Key component to check: Ensure that the tensioner is functioning correctly. A malfunctioning tensioner can cause the drive component to slip or cause uneven wear. The layout also requires you to pay attention to the alignment marks on each pulley, which help in identifying proper installation.
Important advice: If replacing the serpentine component, be sure to confirm the correct installation direction to avoid undoing your work. Incorrect setup could affect engine cooling or power distribution to essential systems. Always use a detailed reference when adjusting or replacing the system’s components for optimum function.

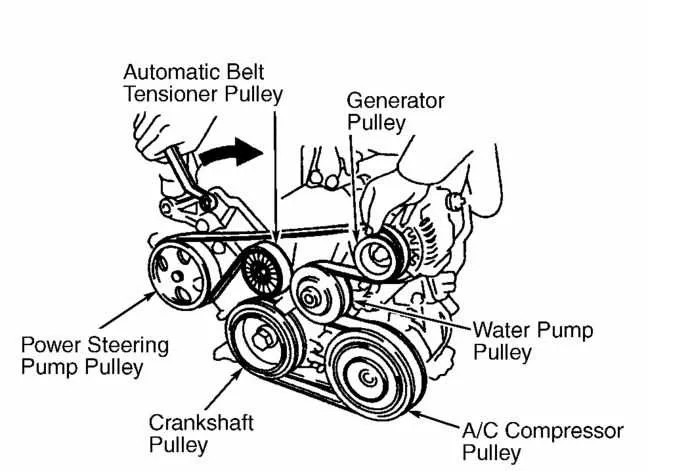

07 Model Engine Serpentine Routing
To ensure proper function, the serpentine system on the 2007 model engine must be routed accurately. Start by placing the long drive loop through the alternator, ensuring it follows a precise path to the water pump. The tensioner pulley should be positioned on the left side for easy access to adjust the tension. The routing should cross the AC compressor and then wrap around the crankshaft pulley. Verify the belt’s tightness by checking the tensioner spring’s position.
When replacing the drive loop, make sure it is aligned to avoid slippage and undue wear on the pulleys. For the correct configuration, you should notice the belt crossing over the top of the idler pulley before reaching the power steering pump. If the system feels unusually tight or loose, perform an inspection to ensure no components are misaligned.
Regular maintenance is essential for avoiding premature failure. Inspect for cracks or fraying signs, particularly near high-heat areas like the engine block. Always replace the drive loop at recommended intervals to maintain optimal operation.
How to Read the 07 Toyota Camry Belt Diagram for Accurate Installation
To properly install the serpentine system in a 2007 model, start by ensuring the routing aligns with the system components shown in the visual. Begin by locating the primary pulley on the crankshaft. From there, follow the path that loops through each component sequentially–alternator, power steering, and air conditioning compressor. Be attentive to the tensioner pulley’s position, as it plays a critical role in ensuring the right amount of slack. Make sure the drive loop isn’t twisted at any point, especially at the idler pulleys, which guide the path of the loop. Pay close attention to the direction of rotation of each pulley to avoid misalignment. A correct layout minimizes unnecessary strain on the parts and prevents premature wear. Check the position of the idler and tensioner pulleys for accuracy, as they must maintain appropriate tension for efficient operation. Always verify that the routing pattern is followed without deviation, which can lead to operational failure or damage to the engine components.
Use a flashlight if needed to view hard-to-reach areas for complete clarity on pulley placements. Double-check the alignment of the tensioner, making sure it’s set properly to maintain belt tightness. Once you have ensured all pulleys are correctly routed, manually rotate the crankshaft to test for smooth movement. Any resistance or unusual noise suggests misalignment that needs correction. If everything moves smoothly, the system is properly installed.
Common Issues with the 07 Toyota Camry Serpentine Belt and How to Diagnose Them
1. Cracking or Fraying: A frequent sign of wear. Inspect the component for visible cracks or frayed edges. These defects indicate the rubber is degrading, often due to age or prolonged exposure to heat. A cracked unit can cause it to slip, affecting the alternator, air conditioning, or power steering performance.
2. Squealing or High-Pitched Noise: A high-pitched squeal when starting the engine or accelerating typically points to an improperly tensioned unit. It may also mean that the friction surface is wearing down or that it’s too loose, resulting in slippage.
3. Slipping: Loss of tension can lead to slipping. If the tensioner is faulty or the part has stretched, slipping may occur. This will result in an inconsistent power supply to critical accessories like the alternator or power steering pump.
4. Misalignment: Misaligned pulleys can cause uneven wear. This may be a result of a damaged tensioner or pulley misalignment. Check for visible pulley wobbling, as it indicates a potential failure of the tensioning mechanism.
5. Burning Smell: If the unit is overheating due to excessive friction, it can emit a burning rubber smell. This often results from incorrect tension or a failing pulley bearing that creates excess drag.
6. Poor Engine Performance: If the accessories that rely on this component are not functioning properly (e.g., the alternator not charging), engine performance may degrade. Ensure all systems driven by the component are operating smoothly to avoid power drain.
7. Visual Inspection: Periodically check for glazing or shiny spots on the surface, as this indicates friction damage. A quick visual inspection will help catch wear before it leads to serious mechanical failure.
Diagnostic Tips: When diagnosing, use a flashlight to inspect the entire length of the part. Use a pry bar or a similar tool to test its tension. If it moves too easily, the tensioner might need replacement. Always ensure pulleys rotate freely and check that the unit is properly aligned with all connected components.
Step-by-Step Guide to Replacing the 07 Toyota Camry Serpentine Belt
Replacing the serpentine belt in your 2007 model requires precision and proper tools. Follow this detailed guide for a successful replacement:
- Preparation: Ensure the engine is off and cool. Disconnect the negative terminal of the battery to avoid accidental electrical shorts.
- Locate the tensioner pulley: The tensioner keeps the drive components tight. Find it using the engine’s layout, typically near the front of the engine.
- Release the tension: Use a wrench or ratchet to rotate the tensioner in the direction indicated by the manufacturer, usually counterclockwise, to release the pressure on the existing component.
- Remove the old component: Once the tension is released, carefully remove the old part from the pulleys. Take note of the routing path for the new one.
- Inspect the pulleys: Check each pulley for signs of wear, damage, or roughness. Replace any components showing significant wear.
- Install the new piece: Position the new part onto the pulleys following the exact routing pattern. Ensure it is aligned properly with each pulley groove.
- Apply tension: Rotate the tensioner back into position to tighten the new part. Verify that the tension is adequate–there should be no slack, but the part shouldn’t be too tight.
- Test the installation: Before reassembling any parts, manually rotate the engine’s crankshaft pulley to check the new piece’s movement. Ensure smooth rotation with no slipping.
- Reconnect the battery: Reconnect the negative terminal and double-check that everything is secure.
- Final inspection: Start the engine and monitor the new part during operation. Listen for any unusual noises or irregularities. If all runs smoothly, the replacement is complete.
