2-inch pipe for washing machine drain; Standpipe 24 inches above p-trap; Branch arm to vertical stack; Relax, I’m a master plumber; CLICK HERE to Get Tim’s. When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer.

If they omit the trap . The piping in the photo on the left represents a laundry sink drain, while the photo on the right depicts a washing machine’s stand pipe.

In each A is the vent, B is. A bit of knowledge about plumbing can save you lots of money.

You might have given it some thought before, but never made any time to gather information.In your scenario, if a fixture that’s farther upstream discharges lots of water that rushes by the wye fitting where your washing machine drain pipe connects, the vacuum created by the water rushing past the washing machine branch Wye will siphon water from your trap.

Correct Venting Prevents Suction.

Washing Machine Drain. Plumbing a washing machine drain has always seemed easier to me as there is no fixture to install.

No trip back after the counter-top is installed and the floor is done. The hardest thing to do is install an in wall box,[auto washer box], when it is called for.

Secondary Navigation

See my page, Washing Machine Pipes, for a suggestion. When hooking up a new washing machine, some people look for a convenient drain line and simply install a pipe that extends to the washer.

If they omit the trap and vent, it’s a mistake that can.

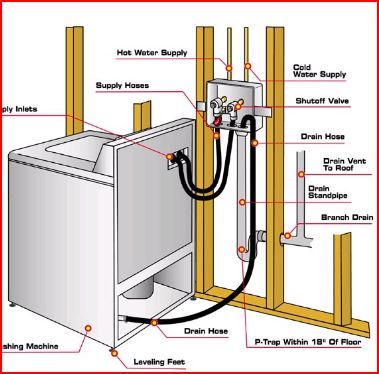

Washing Machine Drain and Feed Line Diagram. Visit.

Discover ideas about Bathroom Plumbing “Home Plumbing Drain Line Diagrams Plumbing Before Concrete Wiring Diagram” Laundry Room Before/After Laundry room organization Laundry room decor Small laundry room ideas Farmhouse laundry room Laundry room shelves Laundry closet Kitchen Short.

E.

is the fixtures tail piece, the vertical section before, [upstream of], the trap. A washing machine pipes tail piece must be at least 18″ but no more than 30″.

F. is the p-trap, a washing machine pipes p-trap must be installed above the floor, at least 6″ above but not more than 18″ above.Washing Machine Venting Diagram – Ask the BuilderWashing Machine Pipes, pipe configuration images, helpful tips
